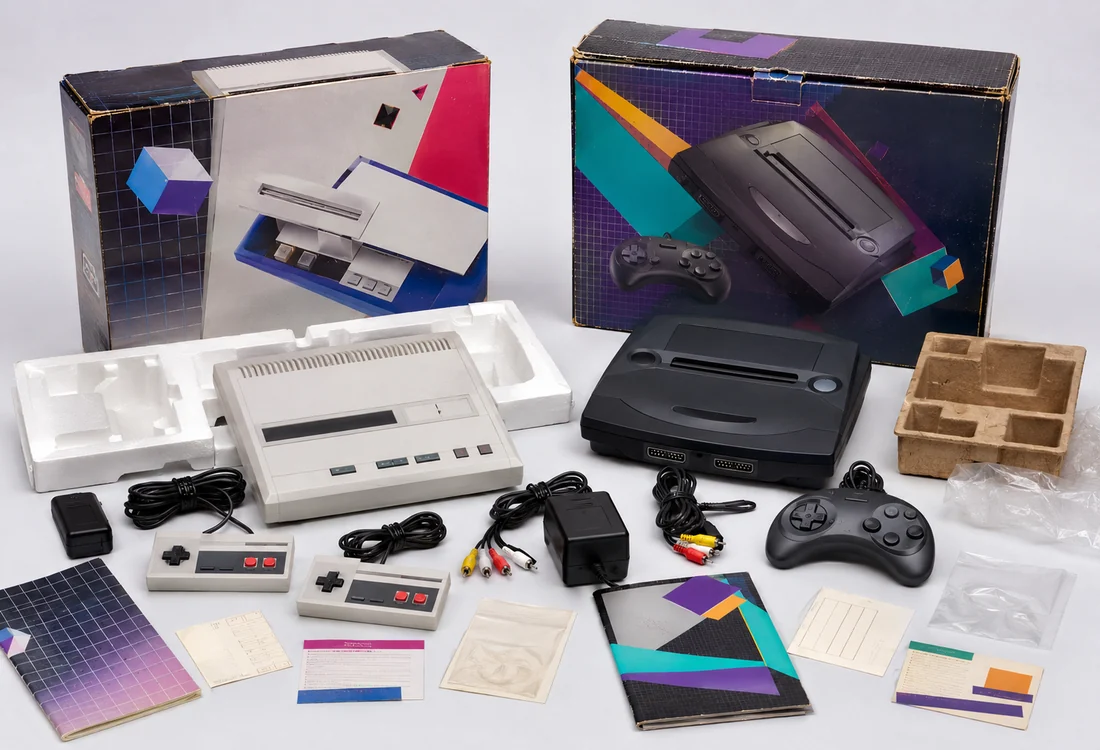

What complete-in-box really means

A complete set should be judged against the contents originally supplied for that exact model, region and production period.

Completeness is model-specific

Controllers, adapters, manuals, registration cards, inserts and promotional materials varied by region and bundle. Use period documentation rather than assumptions.

Inspect the box as an object

Check flaps, tabs, seam splits, crushing, fading, tape, writing and repaired corners. Original internal inserts are often harder to replace than the console.

Matching condition matters

A pristine box paired with heavily worn hardware may indicate a marriage of separate items. Consistent wear is not proof, but inconsistency deserves investigation.

Collector context

How to use this guide

This page is a starting point, not a substitute for model-specific verification. Use it to organize the questions, evidence and preservation choices that matter before money or irreversible work is involved.

Build the component map first

Complete-in-box is model- and region-specific. List the console, controller, power supply, video lead, manuals, inserts, bags, registration cards and promotional material before judging completeness. Similar retail packages can have different contents.

For higher-value examples, preserve the original listing, serial photographs and service notes. These records make future condition claims more credible and help distinguish an honest working collection from a group of cosmetically improved unknowns.

Match serial and packaging details

A correct box with the wrong revision or regional console may be a desirable assembled set, but it is not the same as a matched original package. Compare labels, date codes, packaging artwork and insert shape.

Store the box like an artifact

Keep retail packaging away from sunlight, humidity, pressure and adhesive contact. Support empty space so panels do not collapse, and never use the original box as the shipping container.

Expanded field guide

Putting Complete-in-Box Console Collecting into practice

The following workflow turns general advice into repeatable collector decisions. It is deliberately conservative because vintage hardware is finite, replacement parts vary in quality and irreversible work can reduce historical value.

Define the objective before touching the hardware

Decide whether the priority is historical preservation, regular play, resale preparation, cosmetic presentation or fault diagnosis. These goals overlap, but they do not always recommend the same action. A preservation-first collector may accept yellowing and retain original components, while a daily-use owner may prioritize reliability and safe replacement parts.

Write the objective at the top of a worksheet. Record the console model, serial number, starting condition, included accessories and current faults. This simple step prevents project drift and creates a record that follows the hardware.

Gather evidence before intervention

Photograph every side, label, port, fastener and defect under neutral light. Save close-ups of cracks, discoloration, corrosion, missing pieces and prior repairs. When opening is justified, photograph screw locations, cable routing, shields and connector orientation before moving them.

Do not clean away evidence before documenting it. Residue, dust patterns, seal condition and tool marks can help explain storage history or previous service. Documentation also protects against confusing similar parts when several projects are on the bench.

Use the least invasive successful method

Begin with observation, dry cleaning and external testing. Escalate only when the previous step cannot answer the question or correct the problem. Avoid combining multiple changes at once because doing so makes it difficult to identify which change helped or caused a new fault.

Use materials that are known to be compatible with the exact plastic, coating, label and metal involved. Test uncertain methods on a hidden area or expendable part. Stop immediately when color, gloss, texture or printing begins to change.

Maintain parts control

Use labeled trays or bags for screws and small parts. Separate fasteners by location even when they appear identical, because length and thread differences can damage posts or boards. Never force a screw that does not start easily by hand.

Retain original components removed during service. Label them with the console serial, date and reason for replacement. A future owner can then evaluate the work and, when appropriate, reverse it.

Document testing conditions

Record the power supply, display connection, media, controller and duration used for each test. Note whether the system was cold or warm, whether the fault was repeatable and whether moving a cable changed the result. “Works” is not a sufficient service note.

When comparing before and after behavior, change one variable at a time. Use the same display, media and controller whenever possible. This makes the result meaningful rather than anecdotal.

Common decision errors

Assuming a cleaner appearance means better internal condition.
Using an adapter because the connector physically fits.
Replacing many parts before confirming the fault.
Discarding original components or packaging.
Applying aggressive cosmetic treatment before understanding collector impact.
Trusting undocumented “refurbished” claims.
Testing only long enough to see a power light.
Shipping accessories loose inside the same box as the console.

Collector worksheet

Area	Record	Decision
Identity	Model, region, revision, serial	Confirm compatibility before purchase or service
Condition	Cosmetic, structural and functional faults	Prioritize safety and stability
Originality	Replacement parts, shell swaps, labels, modifications	Price and preserve accordingly
Completeness	Power, video, controllers, media, box contents	Budget missing pieces
Evidence	Photographs, receipts, service notes, test video	Reduce uncertainty
Storage	Environment, battery removal, cable support	Prevent new damage

When to stop and seek specialist help

Stop when mains voltage, damaged power supplies, severe corrosion, leaking capacitors, broken traces, unstable optical assemblies or rare irreplaceable plastics are involved. A specialist is also appropriate when the console is unusually valuable, historically significant or difficult to replace.

Choose a technician who documents work, explains alternatives, returns removed parts and avoids unnecessary cosmetic treatment. The cheapest repair is not always the least expensive outcome when poor work creates additional damage.

Aftercare and review

After completing the work, repeat the original test sequence and compare results. Photograph the finished condition, update the parts list and note any remaining limitations. Store the record with the console rather than relying on memory.

Review the system after several weeks of use. Some faults return only after heat cycles, cable movement or repeated media loading. A follow-up note makes the guide a living maintenance record instead of a one-time project.

Best practice: Preserve information as carefully as hardware. A modest console with clear provenance and honest service records is easier to value, maintain and sell than a cosmetically perfect example with an unknown history.
