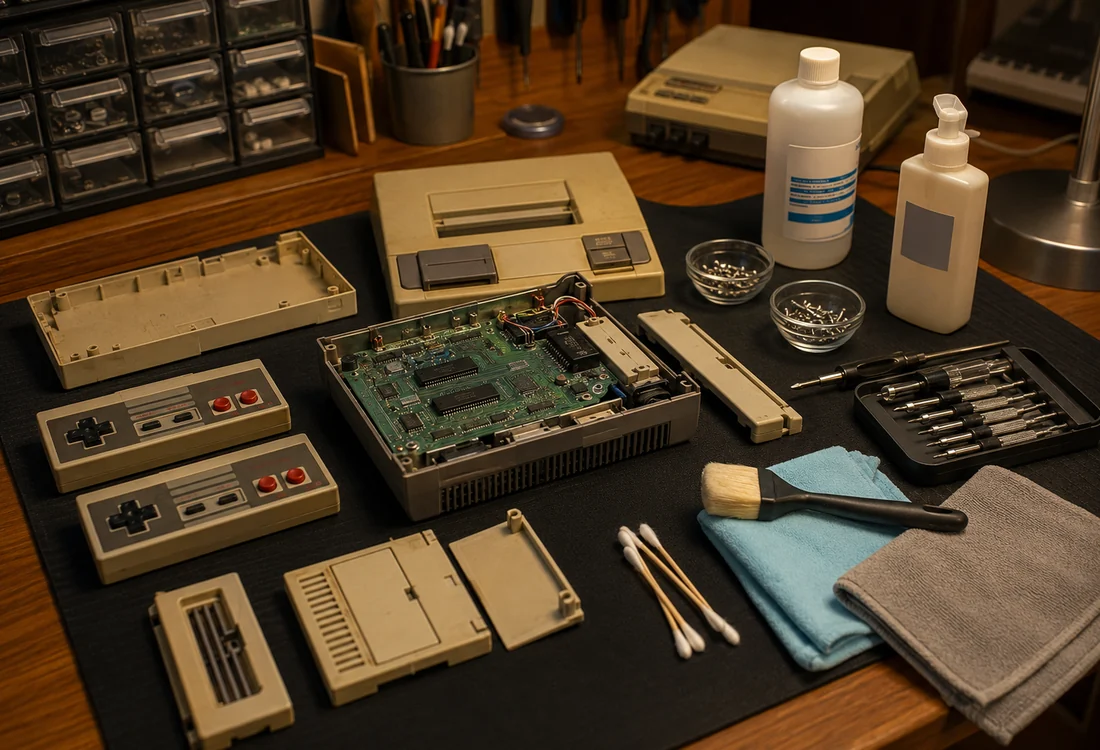

Clean, preserve and restore responsibly

Define the objective before touching the hardware

Decide whether the priority is historical preservation, regular play, resale preparation, cosmetic presentation or fault diagnosis. These goals overlap, but they do not always recommend the same action. A preservation-first collector may accept yellowing and retain original components, while a daily-use owner may prioritize reliability and safe replacement parts.

Write the objective at the top of a worksheet. Record the console model, serial number, starting condition, included accessories and current faults. This simple step prevents project drift and creates a record that follows the hardware.

Gather evidence before intervention

Photograph every side, label, port, fastener and defect under neutral light. Save close-ups of cracks, discoloration, corrosion, missing pieces and prior repairs. When opening is justified, photograph screw locations, cable routing, shields and connector orientation before moving them.

Do not clean away evidence before documenting it. Residue, dust patterns, seal condition and tool marks can help explain storage history or previous service. Documentation also protects against confusing similar parts when several projects are on the bench.

Use the least invasive successful method

Begin with observation, dry cleaning and external testing. Escalate only when the previous step cannot answer the question or correct the problem. Avoid combining multiple changes at once because doing so makes it difficult to identify which change helped or caused a new fault.

Use materials that are known to be compatible with the exact plastic, coating, label and metal involved. Test uncertain methods on a hidden area or expendable part. Stop immediately when color, gloss, texture or printing begins to change.

Maintain parts control

Use labeled trays or bags for screws and small parts. Separate fasteners by location even when they appear identical, because length and thread differences can damage posts or boards. Never force a screw that does not start easily by hand.

Retain original components removed during service. Label them with the console serial, date and reason for replacement. A future owner can then evaluate the work and, when appropriate, reverse it.

Document testing conditions

Record the power supply, display connection, media, controller and duration used for each test. Note whether the system was cold or warm, whether the fault was repeatable and whether moving a cable changed the result. “Works” is not a sufficient service note.

When comparing before and after behavior, change one variable at a time. Use the same display, media and controller whenever possible. This makes the result meaningful rather than anecdotal.

Common decision errors

• Assuming a cleaner appearance means better internal condition.
• Using an adapter because the connector physically fits.
• Replacing many parts before confirming the fault.
• Discarding original components or packaging.
• Applying aggressive cosmetic treatment before understanding collector impact.
• Trusting undocumented “refurbished” claims.
• Testing only long enough to see a power light.
• Shipping accessories loose inside the same box as the console.

Collector worksheet

When to stop and seek specialist help

Stop when mains voltage, damaged power supplies, severe corrosion, leaking capacitors, broken traces, unstable optical assemblies or rare irreplaceable plastics are involved. A specialist is also appropriate when the console is unusually valuable, historically significant or difficult to replace.

Choose a technician who documents work, explains alternatives, returns removed parts and avoids unnecessary cosmetic treatment. The cheapest repair is not always the least expensive outcome when poor work creates additional damage.

Aftercare and review

After completing the work, repeat the original test sequence and compare results. Photograph the finished condition, update the parts list and note any remaining limitations. Store the record with the console rather than relying on memory.

Review the system after several weeks of use. Some faults return only after heat cycles, cable movement or repeated media loading. A follow-up note makes the guide a living maintenance record instead of a one-time project.
